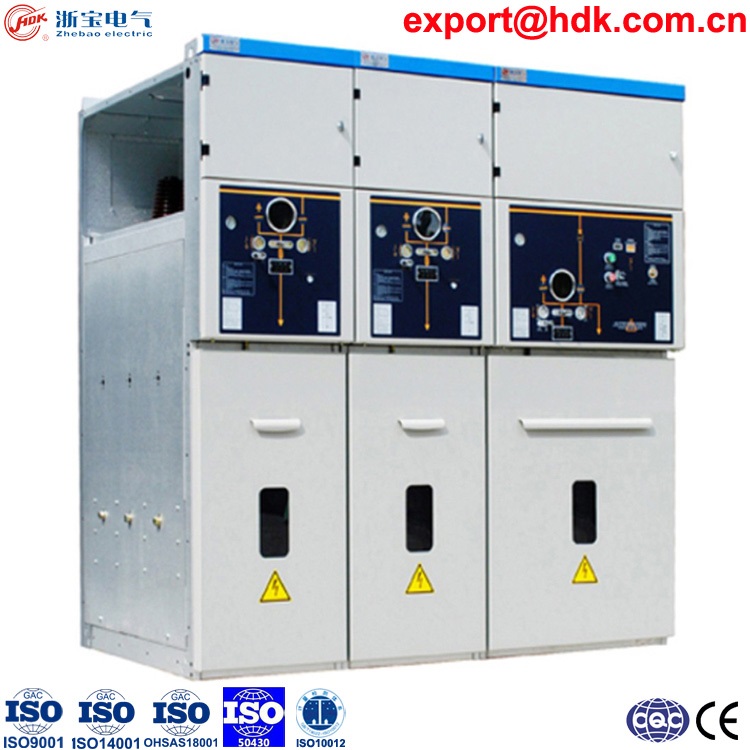

ZBF-24A (XGN15-24) ring-network gas insulated metal-enclosed switchgear.

● Model: ZBF-24

● Name: AC gas insulated metal enclosed switchgear RMU

● Scheme options: load switch panel ZBF-24/RK, load switch - fuse combined ZBF-24(T), Vacuum CB panel ZBF-24(V);

● Rated voltage (Ue): 24kV;

● Rated current (Ir): 630A (load switch panel, VCB panel), 100A (LS-Fuse combined panel);

● Short time withstand current (Icw) (4s): 20kA;

● Short circuit drop-out current: 31.5kA (combined panel), 20kA (VCB panel);

● Rated transfer current: 1400A (for T);

● Protect Degree: IP67, shell IP4x;

● Dimension: for RK 1600H *325W *785D (mm), for T 400W, for V 450mm W

SF6 compact co-cabinet gas insulated switchgear (GIS) adopts modular design to meet end user's or network node's requirement, and requirements of electric distribution switch station, box substation and cable branch box. It is structure-tight, safe and reliable, long-life and maintenance free.
